Ackermann Cablelink Rapide Floorboxes
Further information:
- Ackermann PDF
- Product List PDF
Features
- Quick fit blade system
- 10mm lid recess
- Manufactured from high quality polyamide
Floor Cut-Out Dimensions
| Box Type | Length | Width |
| 2-Compart | 210mm | 210mm |
| 3-Compart | 261mm | 210mm |
| 4-Compart | 242mm | 222mm |

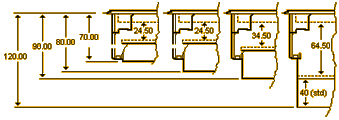

Floor Box Depths
Plates
All Ackermann plates are the same dimensions for new and old floor boxes.
72.5mm in width x 181mm in Length.
